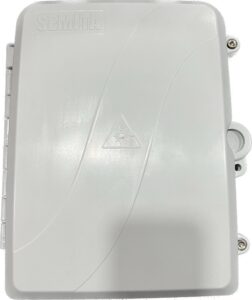

24F Fiber Distribution Box
- Industry Standard User Interface, is made of high impact plastic.
- Light and handy with easy maintenance, has special key-operated switches.
- Anti-UV, Ultra violet resistant and rainfall resistant.
- Splicing tray has two sides – one side for splitter & out-cable arrangement; the other side for the incoming cable and splicing protection.
Splicing:12~24cores. - 3 inlet ports, 16 outlet ports
mid-span provision provided with a removable plate provision for cable entry - Can accommodate PLC splitter and box style splitter. Max splitting 1:16.
- Can be used in indoor and outdoor, Wall-mounting.
Enhance user experience with Advanced Tabs, allowing seamless content navigation. Organize information efficiently while keeping the interface clean and interactive. Perfect for FAQs, product details, or multi-section content.
Technical Parameters
|
Type
|
Measurements
|
|---|---|
|
Max size（D×W×H)
|
317.5 × 248 × 101mm
|
|
317.5 × 248 × 101mm
|
1.75 kg
|
|
Radius of curvature
|
≥40mm
|
|
Drop cable entry hole diameter
|
for upto 6mm cable
|
|
Splice tray excess loss
|
≤0.01dB
|
|
Max capacity(single fiber)
|
24 cores
|
|
Temperature range
|
- 40℃ ~ + 80℃
|
|
Lateral compression resistance
|
≥2000N / 10 cm
|
|
Impact resistance
|
≥20N.m
|
Accessories
- Pole Mount accessories x 1set Pigtails x 2 Cable ties x 8 Insulation Tape x 1 Wall mounting accessories Fiber protection tube x 0.5m Heat Shrink tube x 8
- Pigtails x 2
- Cable ties x 8
- Insulation Tape x 1
- Wall mounting accessories
- Fiber protection tube x 0.5m
- Heat Shrink tube x 8
