AISG Cable Assemblies

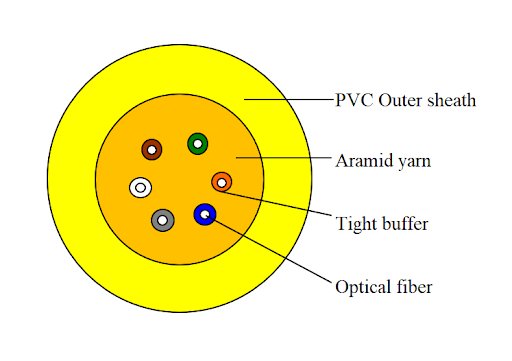

- Tight buffered fiber without jelly compound
- Aramid yarn strength members
PVC outer sheath available - Usually, SM: yellow; MM: orange outer sheath
- 8/12/24/48 fiber variants available
- Suitable for aerial, pipeline, bracket laying,
- Aramid strength members reduce weight for longer span lengths
- construction is ideal for use near electrical power lines
Mechanical & Environmental characteristics
|
PartNumber
|
Fiber Count
|
Outside Diameter (mm)
|
T.B Diameter (mm)
|
Cable Weight (kg/km)
|
Tensile (S/L) -N
|
Crush Load (S/L) -N
|
Bend Radius (S/L) -(mm)
|
|||
|---|---|---|---|---|---|---|---|---|---|---|
|
04DTB09R-YE
|
4
|
4.5
|
0.9
|
18.0
|
1500
|
600
|
1000
|
300
|
20 D
|
10 D
|
|
06DTB09R-YE
|
6
|
5.0
|
0.9
|
22.0
|
||||||
Fiber Characteristics
|
Characteristics
|
Attenuation
|
|||
|---|---|---|---|---|
|
Wavelength
|
1310nm
|
1550nm
|
||
|
Data
|
≤0.35dB/km
|
≤0.22dB/km
|
||
|
Note:
* The color identification of the buffer layer complies with the standard color identification set in GB13993.3-2001 Standard * S: short term; L: long term; T.B: tight buffer * Crush load: N/100mm; D: cable diameter |
||||
Tight Buffer Colour Code
- BL- Blue
- OR- Orange
- GR- Green
- BR- Brown
- GY- Grey
- WH- White
- RE- Red
- BK- Black
- YE- Yellow
- PU- Purple
- PI- Pink
- AQ- Aqua
