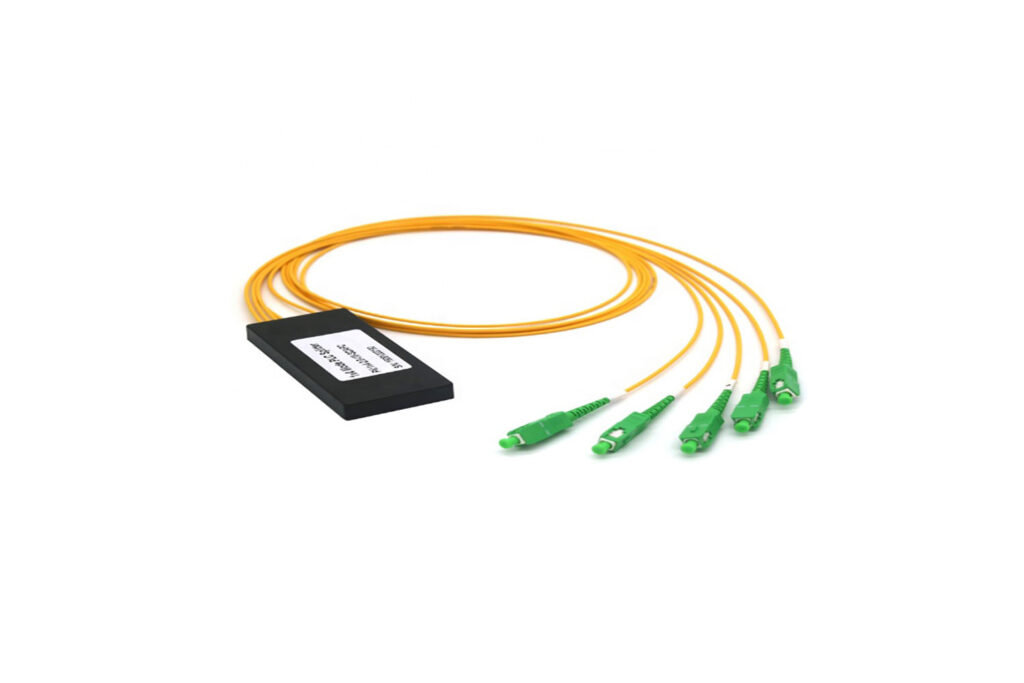

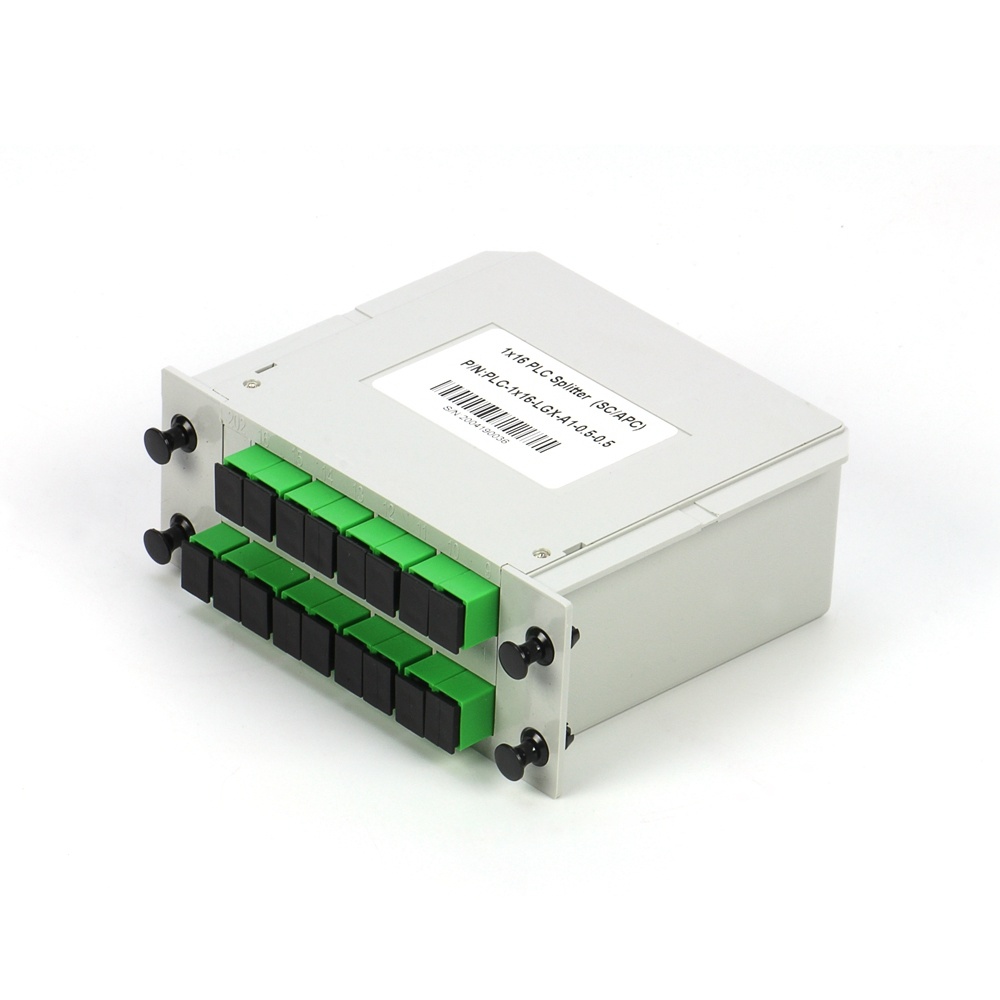

PLC Splitter Cassette/ABS/Tube
- Low insertion loss
- Low PDL
- Compact Design
- Good channel
- uniformity
- Wide operating wavelength
- High reliability and stability
- FTTx systems
- PON Networks
- CATV links
- Optical signal distribution
1XN PLC SPLITTER
|
Type
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
|---|---|---|---|---|---|---|
|
Fibre Type
|
G657.A/G652.D
|
G657.A/G652.D
|
G657.A/G652.D
|
G657.A/G652.D
|
G657.A/G652.D
|
G657.A/G652.D
|
|
Operating wavelength (nm)
|
1260 to 1650 nm
|
1260 to 1650 nm
|
1260 to 1650 nm
|
1260 to 1650 nm
|
1260 to 1650 nm
|
1260 to 1650 nm
|
|
Insertion loss (db) -Max(w/connector)
|
4.2
|
7.5
|
11
|
14
|
17.4
|
20.5
|
|
Uniformity loss (db) - Max
|
0.6
|
0.6
|
0.8
|
1.2
|
1.5
|
1.8
|
|
Polariation Dependent Loss (db) -Max
|
0.2
|
0.2
|
0.2
|
0.3
|
0.3
|
0.5
|
|
Return Loss (db)
|
UPC ≥50dB
APC ≥55dB |
UPC ≥50dB
APC ≥55dB |
UPC ≥50dB
APC ≥55dB |
UPC ≥50dB
APC ≥55dB |
UPC ≥50dB
APC ≥55dB |
UPC ≥50dB
APC ≥55dB |
|
Operating Temperature (° Celsius)
|
-40～+85
|
-40～+85
|
-40～+85
|
-40～+85
|
-40～+85
|
-40～+85
|
Mechanical Specification
|
Type
|
Value
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
|---|---|---|---|---|---|---|---|
|
Package Type 1
|
Material
|
Stainless Steel
|
|||||
|
Dimension(LxWxH mm)
|
60x7x4
|
60x12x5
|
80x20x6
|
100x40x6
|
|||
|
Package Type 2
|
Material
|
ABS
|
|||||
|
Dimension(LxWxH mm)
|
100x80x10
|
120x80x18
|
130x80x30
|
||||
2XN PLC SPLITTER
|
Type
|
2x2
|
2x4
|
2x8
|
2x16
|
2x32
|
2x64
|
|---|---|---|---|---|---|---|
|
Fibre Type
|
G657.A/G652.D
|
G657.A/G652.D
|
G657.A/G652.D
|
G657.A/G652.D
|
G657.A/G652.D
|
G657.A/G652.D
|
|
Operating wavelength (nm)
|
1260 to 1650 nm
|
1260 to 1650 nm
|
1260 to 1650 nm
|
1260 to 1650 nm
|
1260 to 1650 nm
|
1260 to 1650 nm
|
|
Insertion loss (db) -Max(w/connector)
|
4.4
|
7.8
|
10.9
|
14.3
|
17.2
|
20.5
|
|
Uniformity loss (db) - Max
|
0.4
|
0.8
|
0.8
|
1
|
1.5
|
1.8
|
|
Polariation Dependent Loss (db) -Max
|
0.2
|
0.2
|
0.2
|
0.3
|
0.3
|
0.5
|
|
Return Loss (db)
|
UPC ≥50dB
APC ≥55dB |
UPC ≥50dB
APC ≥55dB |
UPC ≥50dB
APC ≥55dB |
UPC ≥50dB
APC ≥55dB |
UPC ≥50dB
APC ≥55dB |
UPC ≥50dB
APC ≥55dB |
|
Operating Temperature (° Celsius)
|
-40～+85
|
-40～+85
|
-40～+85
|
-40～+85
|
-40～+85
|
-40～+85
|
compliance
- Telcordia GR-1209-CORE-2001 Telcordia GR-1221-CORE-1999 RoHS
- Telcordia GR-1209-CORE-2001 Telcordia GR-1221-CORE-1999 RoHS
- RoHS
